GS Yuasa Corporation (Tokyo Stock Exchange: 6674) announced today that the company has introduced a new advanced Nano-Carbon Lead Acid battery. The new SLR-1000 is a 2-volt Advanced Lead battery that provides an unprecedented 5000 cycles at 70% depth of discharge.
The SLR-1000 is engineered to meet the deep cycle, high cycle life, large capacity for energy storage and renewable energy applications. The battery uses Advanced Nano-Carbon technology to deliver exceptional performance.
Features of the SLR-1000 Advanced Nano-Carbon Lead Acid Battery
1.Extraordinary Long Cycle-Life (5000 cycles at 70% DOD)
SLR-1000 battery is designed to meet the high cycle life requirements of energy storage systems. This battery is capable of delivering 5000 cycles at 70% Depth of Discharge (DOD).
2.Advanced Nano-Carbon Technology
The SLR-1000 features Advanced Nano-Carbon technology which allows the battery to provide exceptional cyclic performance. This technology has been deployed by GS YUASA in a variety of deep cycle, high cycle life Energy Storage applications.
3.Compact and Installation space efficiency
The SLR-1000 features modular unit construction and can be easily scaled up for large energy storage projects. The battery also features front facing terminals for easy maintenance.
4.Large capacity and Inherent Safety
The SLR-1000 is classified as a Non-Spillable, Valve regulated, Maintenance free (no topping up) battery under UN2800. The SLR-1000 is also a UL recognized system component. In addition, the SLR-1000 battery provides very large capacity (1000Ah/cell).
| Rated Capacity (10HR) | 1000Ah | Mass (weight) | 460 Kg | |
|---|---|---|---|---|
| Nominal Voltage | 12V | Dimensions (mm) | W1145×D495×H323 | |

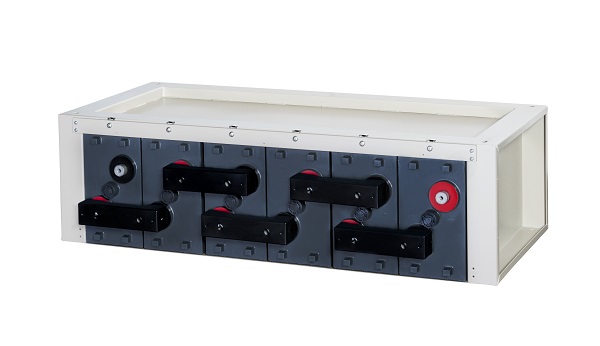

■Images SLR-1000 Unit
■Cycle characteristics (DOD 70% @25℃)
